Adapting a digital safe to be computer controlled

And working with a password vault

For a number of years I had one of these cheap electronic safes. They allow for a combination to be set.

I bought this one from Harbor Freight in 2004:

Old safe

This post isn’t about that safe though.

About 10 years later the safe started to stop working; the control panel stop responding, it made horrible noises… Fortunately anger lifting and dropping the safe got it working again to open the door. I pulled it apart and pretty much there’s just a motherboard and a solenoid and a ribbon cable to the front panel.

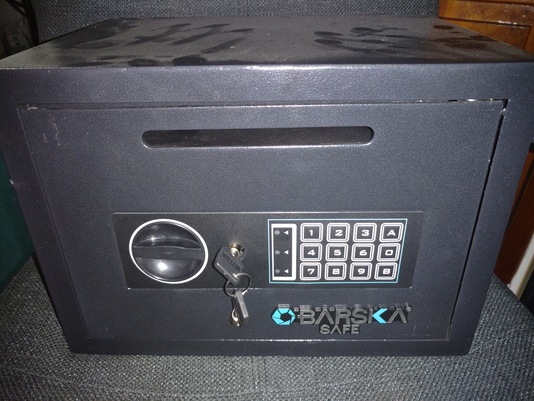

So I bought a new safe. I got this one from Staples

New safe

I was curious and took this one apart. And it looked VERY similar!

Internals

When I looked closer, the only difference between the two setups appeared to be the connector to the battery/reset switch had the alignment notch on the other side (the white connector in the picture). So I did a little kludging and put the new safe’s board into the old safe. And it worked! The old safe is still in use, with the new board.

So I had a safe with no electronics. I wondered if it was possible to replace the electronics with an Arduino, and set complicated passwords via a computer.

And that is what this post is about!

Requirements

  • An electronic safe. Pretty much most of these safes use the same technique as the two I have. We don’t care about the front panel or the electronics; all we need is the solenoid locking mechanism.
  • An Arduino Nano. You can find cheap clones on Ebay for a few dollars
  • An Arduino relay. The Solenoid needs more power than the Arduino can provide, so we use the Arduino to switch a relay, and this switches power to the safe. I found one for $4.
  • A DB9 female serial port plug. This is how we communicate to the safe.
  • A USB serial adapter. These are also on Ebay for a few bucks. Doesn’t need to be expensive! Indeed the cheaper ones are normally better; the real RS232 standard allows for voltages up to 12V, which is more than an Arduino can handle. But the cheaper devices tend to stick to USB voltage levels (5V) which still works and is compatible with the Arduino.
  • A 5V power adapter. I took an old USB adapter and cut the end off.

Overview of the solution

The Arduino will determine if the safe can be opened or not. It will be embedded inside the safe. To talk to the Arduino we use a serial port plugged into the PC. Using this we can send commands such as “lock the safe with password 12345”, “unlock the safe with password 12345”, “open the solenoid lock”. The Arduino will save the password into its EEPROM so even if the power is removed then applied later it will remember.

Originally I was going to use the USB port on the Arduino for both power and communication, until I realised that this would let me upload a new sketch and open the safe at any time. Doh! Fortunately there’s a software serial solution, so we don’t need access to the USB port.

So this is what we’re going to try and build (click for a larger image). Sorry for the awfulness of my sketch!

Diagram

Putting it together

  • First remove the inside cover of the safe. This is normally just 4 screws.

    Cover

  • Unplug the power/reset cable from the main board. Unplug the solenoid cable from the main board. Unplug the ribbon cable from the main board.

  • You can now unscrew the board from the safe door. We don’t need it any more.

  • The reset switch on the side of the door can be unscrewed and pushed through. This frees up a nice hole, which we’ll use later. If you cut the two wires to the battery compartment then you’ll be able to remove that cable harness as well. We don’t need that anymore, either.

  • At this point you should have the door cover free and the safe door has the ribbon cable and the wires to the solenoid.

  • We need to run a cable through a mounting hole on the back of the safe, and then through the hole in the door cover. We only need 4 strands of this cable (2 for power, 2 for serial). I used a few feet of spare ethernet cable I have. It works well. The unneeded 4 cables add strength and don’t hurt.

  • Now on the outside of the safe pick one of the twisted pairs (I used orange but it doesn’t matter). Connect them to the power supply. In my case I just cut the USB end off an old LG USB power adapter and wrapped the wires together. It’s important to remember which side is +5 and which side is GND, so I made ‘orange’ to be +5 and ‘white/orange’ GND.

  • Pick another pair (“blue”). These will go to pins 2 and 3 of the DB9 connector. You also need to connect pin 5 (GND) of the DB9 to GND of the power supply. I’m terrible at soldering so, for me, this was the hardest part! This is also why I chose ethernet cable; the thickness of the cable means it can be secured nicely to the DB9 and is unlikely to break free.

  • Take a break; we’ve finished on the outside of the safe. Now we’re starting on the inside

  • The two cables used for serial communication need to be connected to pins 10 and 11 of the Nano. Now I cheated a little, here. I took a standard cable used to connect to Arduino pins and cut one end off, and connected that to the ethernet cable. Now I can just slip the cable onto the pin. If you’re better at soldering than me then you could solder directly to the board.

  • The power cables need splitting; one set will go the Arduino (so another pair of standard cables), the other positive side will go to the input of the switched side of the relay, and the negative will go to one side of the solenoid.

  • We also need a connection from +5V, GND and pin 7 of the Arduino to the logic side of the relay, and a connection from the ON switched side of the relay to the other connection on the solenoid.

Now the reason I used standard cables is that I can put all this together and test it (see later) and adjust cables as necessary. Once it’s all been proven to work we can then mount it.

Summary of connections

Arduino Nano pinout requirements
================================
 (See https://forum.arduino.cc/index.php?topic=147582.0 for a reference card)


                      +---------+
                      |         |
                      | o     o | VIN Power +5V in
                      | o     o | GND Ground in
  Ground to relay GND | o     o |
                      | o     o | 5V  5V to relay
                      | o     o |
                      | o     o |
                      | o     o |
                      | o     o |
                      | o     o |
   Signal to Relay D7 | o     o |
                      | o     o |
                      | o     o |
  Serial Pin 3 RX D10 | o     o |
  Serial Pin 2 TX D11 | o     o |
                      | o     o |
                      |         |
                      +---------+

Relay connections
=================
  Control side
     VCC - from  5V on Arduino
     GND - from GND on Arduino
      IN - from  D7 on Arduino

   Switch side:
     Central pin +5V power in
          ON pin to safe solenoid
                 (if the solenoid opens when the safe should be locked
                  you've picked the wrong side)

Solenoid
========
   (direction doesn't matter)
   +5V from Relay
   GND from power in

RS232
=====
   Pin 2: Connect to Arduino D11
   Pin 3: Connect to Arduino D10
   Pin 5: Connect to power ground  (important!)

Mounting it

This kit is small enough that we can install it inside the cover. I wanted to keep some air gap around the arduino and relay and I realised I could mount them sideways. The easiest way would be to use some folded carboard!

Carrier

If you’re worried about the cardboard springing loose then you can just put some tape around the ends to add some pressure.

Now I recently got a 3D printer, so I printed a couple of carriers from thingiverse. It does the same thing, but plastic rather than carboard.

Glue the carriers down. It should be below the battery compartment, because this is where the old controller board fitted and so there’s space.

Connect the cables.

Glued Down

You can see I put a cable tie just before the hole; this is an attempt to prevent the cable from being pulled from the outside and breaking a connection.

I decided to add a USB cable (and realised I should have oriented the pieces a different way; there wasn’t enough space for it) and poked the USB cable out through the battery compartment. This allows me to reprogram (upgrade/bug fix) without pulling the whole thing apart. The USB cable fits just inside the battery compartment so it’s not accessible from outside unless the door is open.

USB

Test the setup and then screw the cover back to the door. This hides a multitude of sins and it looks pretty neat!

Inside

Arduino software

This sketch should be loaded onto the Arduino. It’s pretty simple and is purely used to control the solenoid. It listens on the serial port at 9600 baud and will respond to a few instructions.

Each instruction begins with a : character. After the instruction is another : and then an optional parameter, and then ends with another : character. No RETURN is needed.

When power is applied the board says “hello” and tells you if the safe is locked or not. Except for the PING command responses will either start with OK or ERROR.

  • :PING:message:
    Response is PINGACK:message:
    Used to test communication

  • :LOCK:password:
    Sets the safe to locked state. Can not be used if already locked

  • :UNLOCK:password:
    Unlocks the safe… if the password is correct! Allows for one time use of the OPEN command

  • :CLEAR:password:
    Clears the password and resets the safe to unlocked state.

  • :OPEN:time:
    Opens the solenoid for “time” seconds (default to 5 seconds)

  • :STATUS::
    Returns if the safe is locked or unlocked

Testing

I use Linux and the kermit command, but any terminal emulator would work. The Arduino does not echo what you type, so I’ve turned on local echo mode so I can see what I’m typing. I run the kermit command and then apply power to the safe. You should see the onboard LED start flashing once a second while it is waiting for commands. (You won’t be able to see this when the safe is closed and locked, but it’s useful while testing the setup). Remember, there’s no need to press RETURN (indeed you’ll get an error if you do).

% kermit -l /dev/ttyUSB4 -b 9600
C-Kermit>set local on
C-Kermit>c
Connecting to /dev/ttyUSB4, speed 9600
 Escape character: Ctrl-\ (ASCII 28, FS): enabled
Type the escape character followed by C to get back,
or followed by ? to see other options.
----------------------------------------------------
OK Safe code started.  Safe is unlocked
:ping:1234:PINGACK:1234:
:status::OK Safe is unlocked
:lock:12345:OK Safe locked
:status::OK Safe is locked
:open::ERROR State is locked
:unlock:9876:ERROR Wrong password
:unlock:12345:OK Safe unlocked
:open::OK opening safe for 5 seconds
OK opening safe for 4 seconds
OK opening safe for 3 seconds
OK opening safe for 2 seconds
OK opening safe for 1 seconds
OK completed
When the open command is run then the solenoid should click open and the safe door can be opened. At the end of the time the solenoid should click back again, allowing you to lock the door closed. The open command is also the only command that will return more than one line of results.

Main code

The safe code simply provides control over the solenoid. It effectively just replaces the front panel keypad. But since it’s over a serial port it means that we can write programs for our PC to control it (eg pick a random password). The limits of what the program can do are bounded purely by your imagination. Because the password is stored inside the Arduino, and that’s inside the safe, you can’t cheat… except in one way; you could write a program that will try and brute-force guess the password. Now the safe can handle 100 character long passwords. Let’s assume a standard A-Za-z0-9 character set and 100 guesses per second, that’s 62^100 /100 seconds needed to check every combination. Or 54962310687024123417094664250549034290648513960863640477969506441019257048928403777873869677398592797712143671632918789906836353961913573996848721028517534334752940880822 years.

Good luck with that :-)

I might modify the safe code to sleep for 30 seconds after 3 failed attempts to make it even harder…

My plan is to write a web server interface that will allow for local control of the safe. By making it a web server then normal password managers should also work. Your digital safe’s password can now be stored in the same place as the passwords for your bank account.

Maybe it’s just me, but that idea appeals to me!

I haven’t written this code, yet…
